RONDA xtratech

7003.B
5.6 mm
15''', 33.80 mm
Multifunction

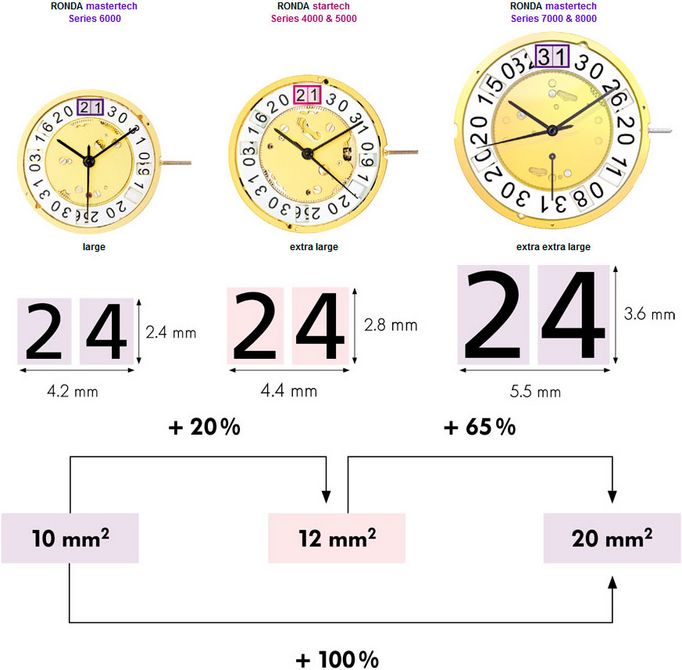

Big date

Product Informations

Product Specifications

Type Analog quartz movement
Line xtratech
Caliber 7003.B
Size 15'''
Version Swiss Made 5 jewels / gold plated EOL
Standard battery life 52 months
Standard hand fitting height 1

Functions

Multifunction
Big date
3 hands

Features

Repairable metal watch movement

Big date with quick change

Power saving mechanism with pulled out stem: Reduction of consumption approximately 70%

Specifications

Technical Specifications

Diameter Total 34.60 mm
Case fitting 33.80 mm
Movement height 5.60 mm
Height over standard battery 5.60 mm
Movement rest 0.60 mm
Height over stem 3.30 mm
Length of stem travel 1.00 mm
Stem thread 0.90 mm
Useful torque second – typical 10 μNm
Useful torque minute – typical 500 μNm
Operating temperature 0 - 50 °C
Instantaneous rate -10/ +20 sec/month
Resistance to magnetic fields 18.8 Oe
Resistance against shock NIHS 91-10

Battery Specifications

Standard battery No. 381
Standard battery life 52 months
Battery voltage 1.5 V
Current consumption – typical 1.32 μA
(Date Mechanism not in Gear)
Current consumption – maximum 3.10 μA
(Date Mechanism not in Gear)

Technical documents

Watch production

Drawing Casing ring
Drawing Dial
Drawing Hand fitting
Drawing Stem
Casing information

User's manual

User's manual PDF with folding marks

Watch repairs

Technical instruction
No PDF available
No Interactive Version available

Movement holders

Movement holders

Movement holder for hand setting
H 7XXX.1A
Movement holder for stem removal
H 7XXX.1T

Various info

Various info

Product Symbol

7003.B

Big date

Big date
