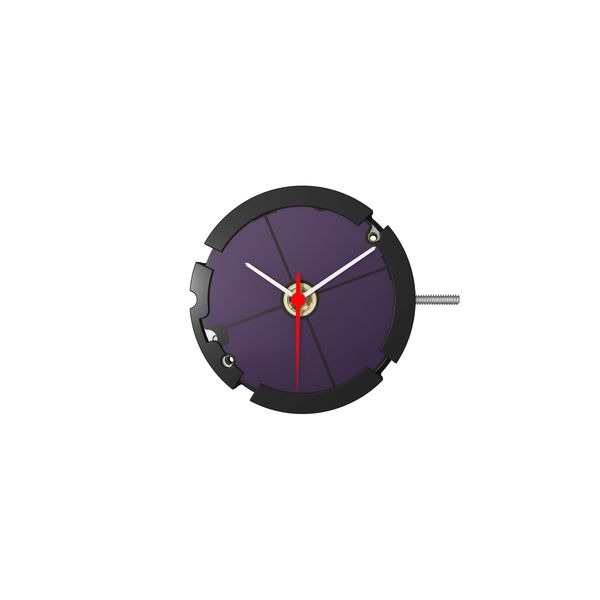

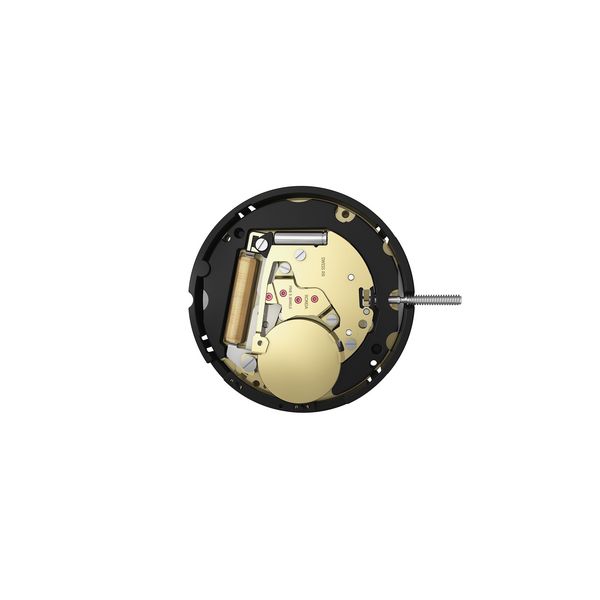

RONDA solartech
213
2.89 mm
11½''', 25.60 mm
Solar quartz movement
3 hands
Product Informations
Product Specifications
| Type | Analog quartz movement |
|---|---|
| Line | solartech |
| Caliber | 213 |
| Size | 11½''' |
| Version Swiss Made | 5 jewels / gold plated |
| Battery running time | 8 months, fully charged, without exposure to light |
| Standard hand fitting height | 1 |
Functions
| Solar quartz movement |
| 3 hands |
Features
Quick start function: 1 minute sun exposure |
Rechargeable secondary battery |
Power saving mechanism with pulled out stem: Reduction of consumption approximately 70%. The battery will remain charged in complete darkness for more than two years and will start working again immediately. |
Specifications
Technical Specifications
| Diameter Total | 26.00 mm |
|---|---|
| Case fitting | 25.60 mm |
| Movement height | 2.89 mm |
| Height over secondary battery | 3.09 mm |
| Movement rest | 1.18 mm |
| Height over stem | 1.42 mm |
| Length of stem travel | 0.90 mm |
| Stem thread | 0.90 mm |
| Useful torque second – typical | 8 μNm |
|---|---|
| Useful torque minute – typical | 400 μNm |
| Operating temperature | 0 - 50 °C |
| Instantaneous rate | -10 / +20 sec/month |
| Resistance to magnetic fields | 18.8 Oe |
| Resistance against shock | NIHS 91-10 |
Battery Specifications
| Rechargeable battery type | Lithium metal battery MT920 - Ø 9.50 x 2.00 mm |
|---|---|
| Battery running time | 8 months, fully charged, without exposure to light |
| Battery replaceability | Yes |
| Battery voltage | 1.5 V |
| Current consumption – typical | 0.96 μA |
| Current consumption – maximum | 1.35 μA |
Technical documents
Watch production
| Drawing Casing ring | |
|---|---|
| Drawing Dial | |
| Drawing Hand fitting | |
| Drawing Stem | |
| Casing information |
User's manual
| User's manual | PDF with folding marks |
|---|
Watch repairs
| Technical instruction |
No Interactive Version available
|
|---|
Movement holders
Movement holders
Movement holder for hand setting
 |
| H 71X.1A |
Various info
Various info
Product Symbol
 |
| 213 |
